manual concrete placing boom
- Introduction:manual concrete placing boom,new round tube type.

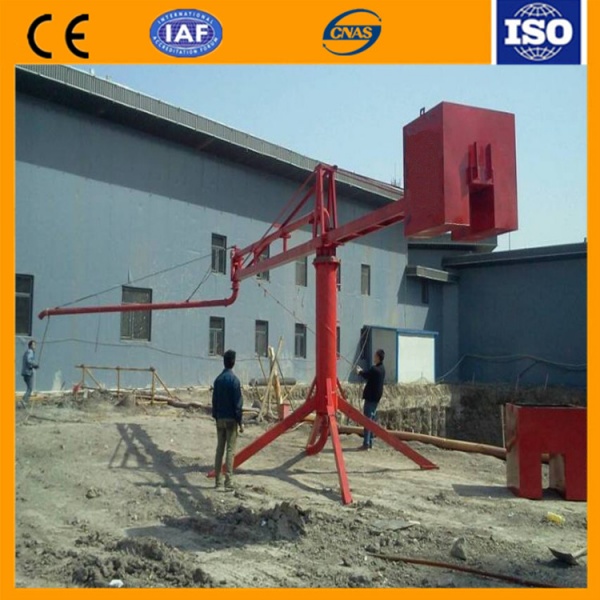

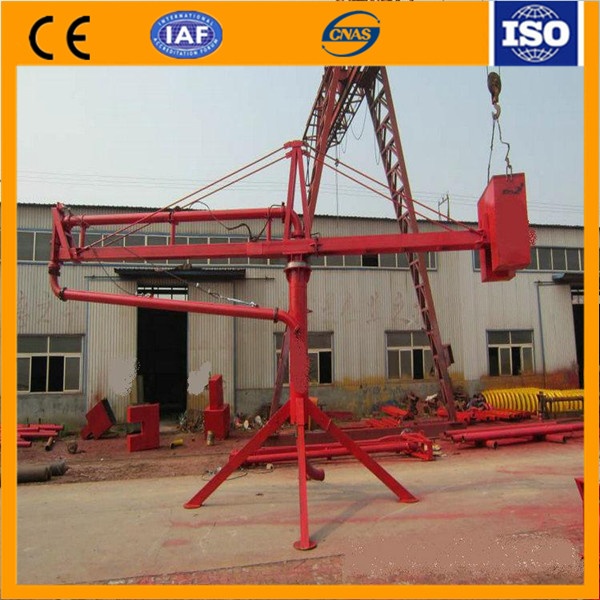

concrete placing boom
product introduction
|
Name |
Data |
|
Control |
Radio and cable remote control |
|
Climbing style |
The paddle, walking type, ship type, |
|
The motor power |
78kw |
|
Angle of rotation |
360 degree |
|
Color |
Yellow,blue,According to customer requirements |
|
Model |
12m,15m,etc |
|
Weight |
1100kg-1900kg |
| Concrete Placing Boom Pipe , Cloth machine | ||||
| Specifications | 12meters manual | 15meters manual | 18meters manual | 18meters (bearing) |
| The big arm design | Dualchannel | Dualchannel | Dualchannel | Dualchannel |
| Radius of gyration (m) | 12 | 15 | 18 | 18 |
| The height of the placing boom | 4 | 4 | 4 | 4 |
| Diameter of conveying pipe (mm) | 125 | 125 | 125 | 125 |
| Leg span (m) | 3.2*3.2 | 4*4 | 4*4 | 4*4 |
| Rotation Methods | Manual | Manual | Manual | Manual |
| The whole weight (kg) | 1100 | 1500 | 1600 | 1600 |
| With weight (kg) | 600 | 800 | 1000 | 1000 |
| Slewing bearing type | 315 | 315 | 380 | 500 |
| Material | Channel angle | Channel angle | Channel angle |
Channel angle |
| Slewing range | 360° | 360° | 360° | 360° |
concrete placing boom features
1,Frame type big arm structure, increase the bearing capacity and stability.
2, High quality rotary bearing, flexible rotation, downy.
3, Double support legs to improve stability and endurance double.
4, With excellent firmness compared with GB steel, angle iron increased several times
5, Impact on the environment vibration slightly
6, With four cables to ensure a stable and secure products for the process
Our advantages:
1. Two foldable booms.
2. Our placing boom has captured the market share with good quality, competitive
price and good after sale service.

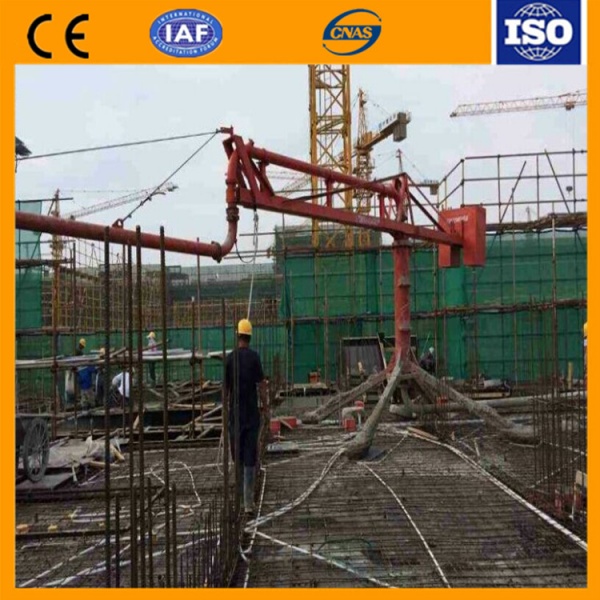

3. It is the necessary auxiliary equipment for pump transferring in construction field.
4. The machine is pulled by hand and can be slewing 360.
Packaging and transport:
No.1 Export standard packing
No.2 Seaworthy packing
No.3 other ways or according to the customer demand
FAQ
1. are you a manufacture or a trading company?
we are the manufacture , found in 1986.
2. what your delivery time?
about 10days after received the deposit
3. what payment terms do you accept?
we accept L/C at sight, T/T, 30%prepaid, 70% paid after you received the copy of B/L.
west union and so on.
