Product introduction

Name	Data
Control	Radio and cable remote control
Climbing style	The paddle, walking type, ship type,
The motor power	78kw
Angle of rotation	360 degree
Color	Yellow,blue,According to customer requirements
Model	12m,15m,etc
Weight	1100kg-1900kg

Product specifications:

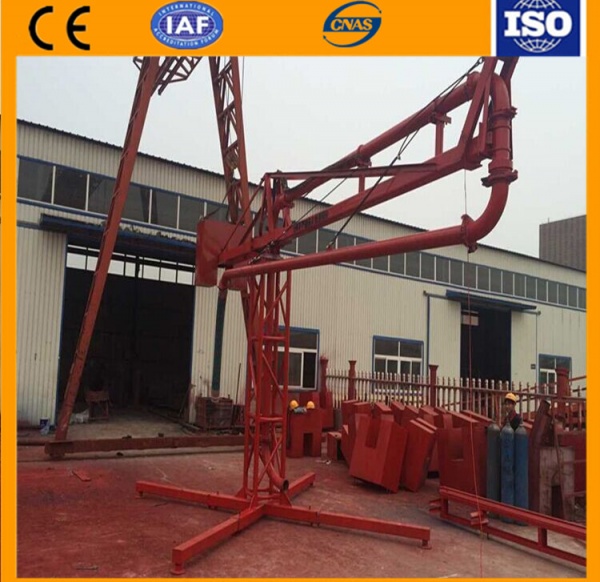

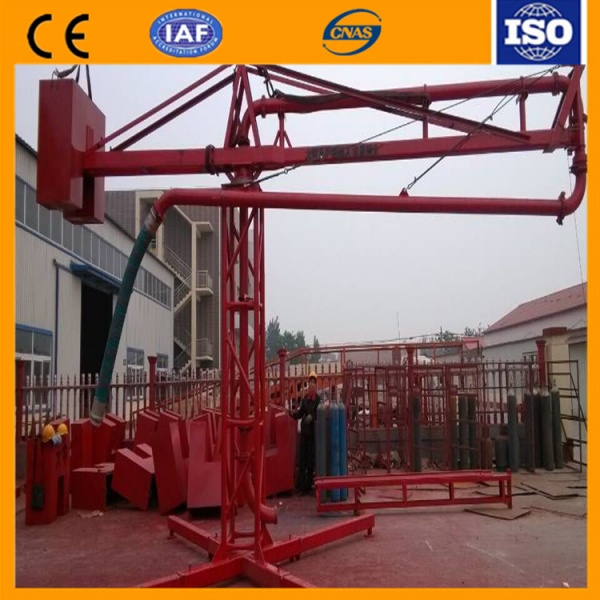

Concrete Placing Boom Pipe ,  Cloth machine
Specifications	12meters manual	15meters manual	18meters manual	18meters (bearing)
The big arm design	Dualchannel	Dualchannel	Dualchannel	Dualchannel
Radius of gyration (m)	12	15	18	18
The height of the placing boom	4	4	4	4
Diameter of conveying pipe (mm)	125	125	125	125
Leg span (m)	3.2*3.2	4*4	4*4	4*4
Rotation Methods	Manual	Manual	Manual	Manual
The whole weight (kg)	1100	1500	1600	1600
With weight (kg)	600	800	1000	1000
Slewing bearing type	315	315	380	500
Material	Channel angle	Channel angle	Channel angle	Channel    angle
Slewing range	360°	360°	360°	360°

1,Frame type big arm structure, increase the bearing capacity and stability.

2, High quality rotary bearing, flexible rotation, downy.

3, Double support legs to improve stability and endurance double.

4, With excellent firmness compared with GB steel, angle iron increased several times

5, Impact on the environment vibration slightly

6, With four cables to ensure a stable and secure products for the process

Our advantages:

1. Two foldable booms.

2. Our placing boom has captured the market share with good quality, competitive

price and good after sale service.

3. It is the necessary auxiliary equipment for pump transferring in construction field.
4. The machine is pulled by hand and can be slewing 360.

Our Services:

1, Engineers available to service machinery overseas

2, Quality problems returned free of charge

3, Customizable

4, Send free samples

5, Product specifications can be customized according to the requirements

6, Provide consumers with regular visits

7,Enterprises through the ISO9000 certification, the product passed 3 c certification,

full compliance with national standards

8,Ensure the supply of parts

No.1 Export standard packing

No.2 Seaworthy packing

No.3 other ways or according to the customer demand

FAQ

1. are you a manufacture or a trading company?

we are the manufacture , found in 1986.

2. what your delivery time?

about 10days after received the deposit

3. what payment terms do you accept?

we accept L/C at sight, T/T, 30%prepaid, 70% paid after you received the copy of B/L.

west union and so on.
