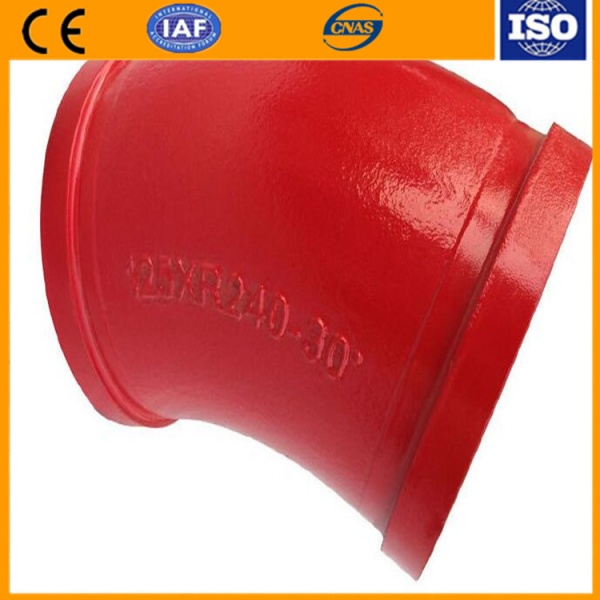

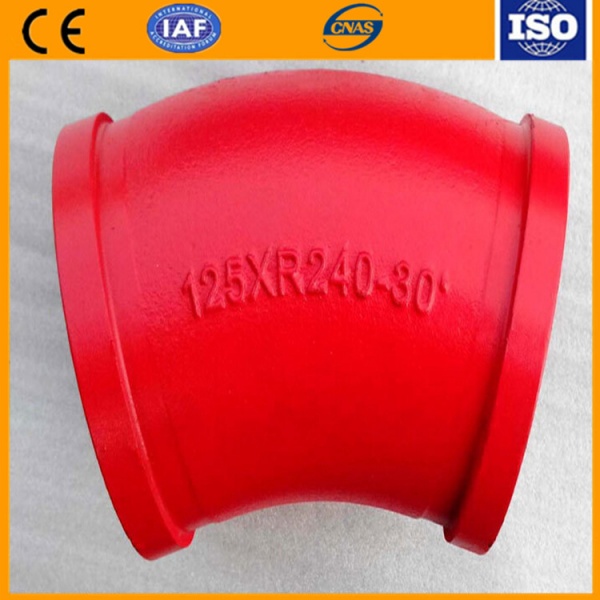

Cast manganese elbow DN125 R240 30 °
- Introduction:
Product parameters:
1.Our elbow products series mainly including carbon steel elbows,high wear resistant elbows,and other material upon your request.
2.A wide range of specifications for you.OEM service available .
3.quality certification of ISO 9001:2008
|
Name |
Material |
Specification |
Weight |
Common life time |
Life tine for two end parts |
Max work pressure |
|
Normal bend |
ZG40Mn2 |
DN125R27590° |
16kgs |
6000-8000m^3 |
1000-3000m^3 |
126 bar |
|
Wear-resistant bend |
Mn13-4 |
DN125R27590° |
16.5kgs |
20000-25000m^3 |
2000-7000m^3 |
132 bar |
|
Twin wall bend |
Cr20NiCu1Mo+G20 |
DN125R27590° |
15kgs |
60000-80000m^3 |
20000-30000m^3 |
91 bar |
|
Twin wall bend |
GX350+G20 |
DN125R27590° |
15kgs |
80000-150000m^3 |
40000-50000m^3 |
98 bar |
the size of lengthen concrete pump elbow
| wear resistant single or double layer concrete pump elbow | ||||||
| type | single wall elbow | double wall elbow | ||||
| material | casting steel , st52 | GX350+G20 | ||||
| model | DN125 | DN150 | DN175 | DN125 | lengthen elbow | |
| R275*90D | R275*90D+110 | 36D | F2000 | R275*90D | R275*90D+110 | |
| R275*45D | R275*90D+211 | R400*30D | A3000 | R275*45D | R275*90D+211 | |
| R275*25D | R275*90D+411 | R400*45D | 471B | R275*25D | R275*90D+411 | |
| R275*20D | R275*90D+424 | R400*30D | 571B | R275*20D | R275*90D+424 | |
| R275*15D | R275*45D+170 | R488*90D | A1000 | R275*15D | R275*45D+170 | |
| R180*90D | R275*45D+310 | R500*90D | C1000 | R180*90D | R275*45D+310 | |
| R232*60D | 20D lengthen | R280*90D | B2000 | R232*60D | 20D lengthen | |
| R240*36D | 25D+740 | R240*36D | 25D+740 | |||
| R240*30D | 40D Zoomlion | R240*30D | 40D Zoomlion | |||
