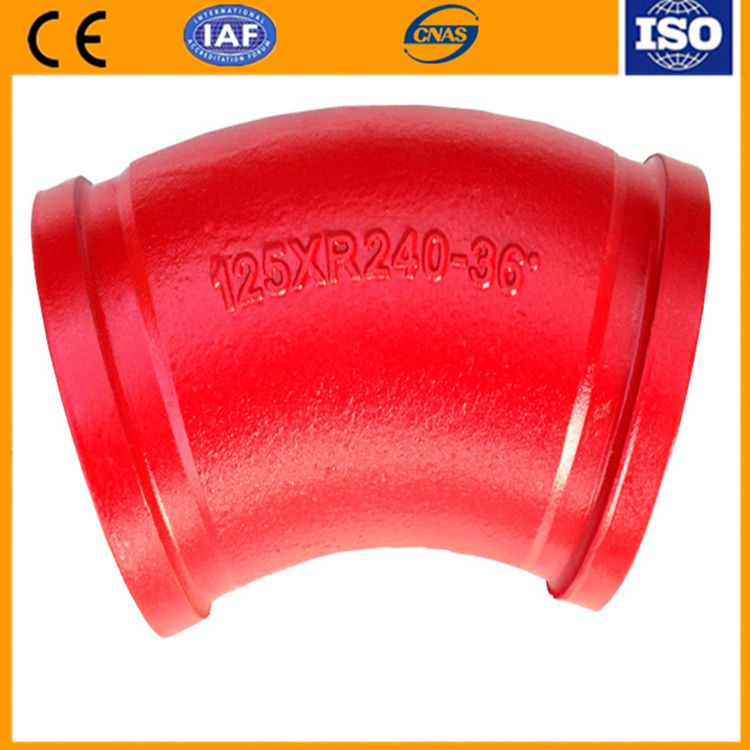

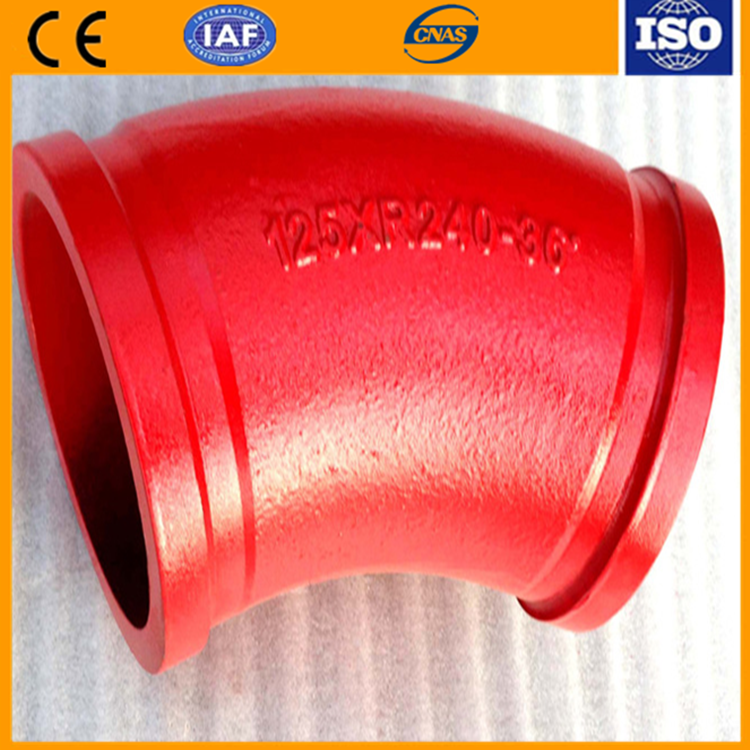

Cast manganese elbow DN125 R240 36 °
- Introduction:Manganese Bend 125mm ID, 240 Radius, 36 Degree 148mm collars
Product parameters:
1.Our elbow products series mainly including carbon steel elbows,high wear resistant elbows,and other material upon your request.
2.A wide range of specifications for you.OEM service available .
3.quality certification of ISO 9001:2008
|
Name |
Material |
Specification |
Weight |
Common life time |
Life tine for two end parts |
Max work pressure |
|
Normal bend |
ZG40Mn2 |
DN125R27590° |
16kgs |
6000-8000m^3 |
1000-3000m^3 |
126 bar |
|
Wear-resistant bend |
Mn13-4 |
DN125R27590° |
16.5kgs |
20000-25000m^3 |
2000-7000m^3 |
132 bar |
|
Twin wall bend |
Cr20NiCu1Mo+G20 |
DN125R27590° |
15kgs |
60000-80000m^3 |
20000-30000m^3 |
91 bar |
|
Twin wall bend |
GX350+G20 |
DN125R27590° |
15kgs |
80000-150000m^3 |
40000-50000m^3 |
98 bar |
the size of lengthen concrete pump elbow
| wear resistant single or double layer concrete pump elbow | ||||||
| type | single wall elbow | double wall elbow | ||||
| material | casting steel , st52 | GX350+G20 | ||||
| model | DN125 | DN150 | DN175 | DN125 | lengthen elbow | |
| R275*90D | R275*90D+110 | 36D | F2000 | R275*90D | R275*90D+110 | |
| R275*45D | R275*90D+211 | R400*30D | A3000 | R275*45D | R275*90D+211 | |
| R275*25D | R275*90D+411 | R400*45D | 471B | R275*25D | R275*90D+411 | |
| R275*20D | R275*90D+424 | R400*30D | 571B | R275*20D | R275*90D+424 | |
| R275*15D | R275*45D+170 | R488*90D | A1000 | R275*15D | R275*45D+170 | |
| R180*90D | R275*45D+310 | R500*90D | C1000 | R180*90D | R275*45D+310 | |
| R232*60D | 20D lengthen | R280*90D | B2000 | R232*60D | 20D lengthen | |
| R240*36D | 25D+740 | R240*36D | 25D+740 | |||
| R240*30D | 40D Zoomlion | R240*30D | 40D Zoomlion | |||
| R240*15D | R240*15D | |||||
| R385*29D | R385*29D | |||||
| R315*33D | R315*33D | |||||
| Technic | forged | |||||
| Average life | 25000cube | 50000cube | ||||
| Application | used in concrete transport in construction work | |||||
Our advantages
1.product profile:we have our own factory, quality department, so we can give you good quality.
2. wear resisdtant. the elbow lifetime: 18000-20000 cube.
3. the surface treatment: baking paint. two time bend .our have more beautiful product.
4. the size compete, we have all the size concrete pump casting elbow. used for boom pump Putzmeister,Sany,
Schwing , and so on.
Packaging and transport:
No.1 Export standard packing
No.2 Seaworthy packing
No.3 other ways or according to the customer demand
Step 1: waterproof package
Step 2: put in package
Step 3: transport in container
FAQ:
1. are you a manufacture or a trading company?
we are the manufacture of concrete pump spare parts for more than ten years and we are the leading
company in this industry.
2.what is your delivery time?
7days after received the deposit.
3. what payment term you accept?
30% prepaid ,70% balance after you received the copy of B/L . L/C, WEST UNION also accept.
