concrete pump s valve/s tube/s pipe

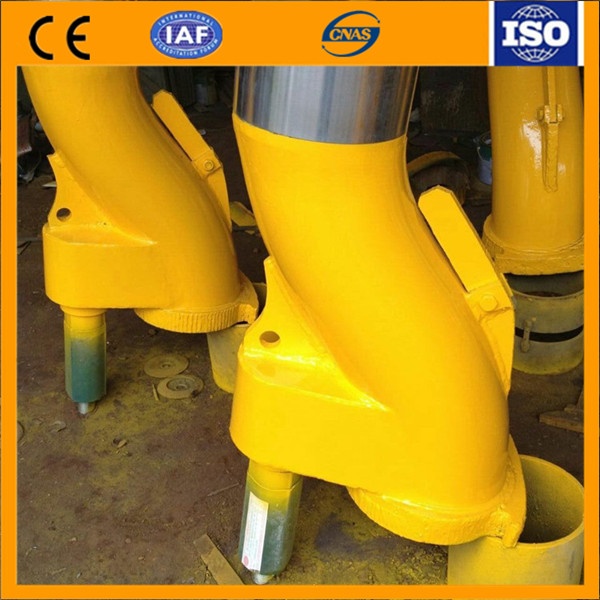

The concrete pump S-tube valve is a crucial component in the pumping system. It is used in combination with the wear plate
and wear ring. The valve is pivotable mounted inside a concrete hopper. It alternately connects one of two outley ends od the
pumping cylinders to the inlet end of the dischage conduit which was mounted on the fromt wall of the hopper.
-
The wear ring is mounted in the opening of the S-shaped tube valve.During
operation, the fast-flowing concrete mixture pushes the wear plate
colsely against the wear ring, forming a tight steel. The opening of the
S-tube valve is in alignment with the opening of the wear plate to
allow the concrete coming from the ouylet end of the pumping cylinder to
pass the wear ring and S-shaped tube smoothly without and blockage.
-
The
S-tube valve is constructed of the plate, flanges, and splined shafts
that have been joined together through welding. The splined shaft is
made of 38CrMoAL. 38CrMoAL material has become a perferred choice of
manufacturers in marketing the S-shaped tube. Various long and short
chrome-plated shaft sleeves are also available. They are made od #45
seamless carbon steel tube, with the chrome plating thickness between
0.12mm and 0.16mm. The inner hole of the s-sharped tube valve is welded
up by using wear-resistant welding electrode.
-
Customized S-shaped tube valve is also availble
-
Brand: Putzmeister/Sany/Zoomlion/Kyokuto/Sermac/CIFA/HOLD/XCMG/Swching
-
Material: Welded pipe16Mn, Shaft 38 CrMoAl, #45 steel, Hardfacing for pipe inner wall
-
Lifetime:>50,000cbm
-
HRC:�?3
Product parameters:
application: Putzmeister,Sany,Schwing,Zoomlion and so on
S valve shaft hardness : HB200-250
work life: 50000-100000cbm
package detail: wooden case
