electric concrete placing boom
- Introduction:electric concrete placing boom radiues: 12m, 15m, 18m delivery time: 5days warranty time: 1 years

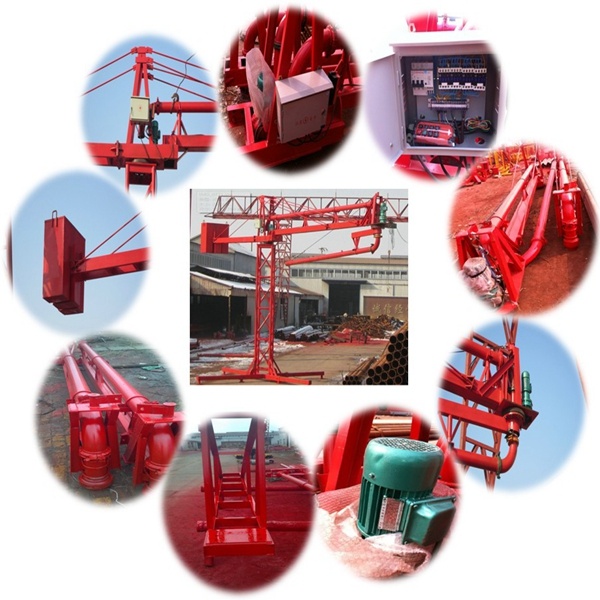

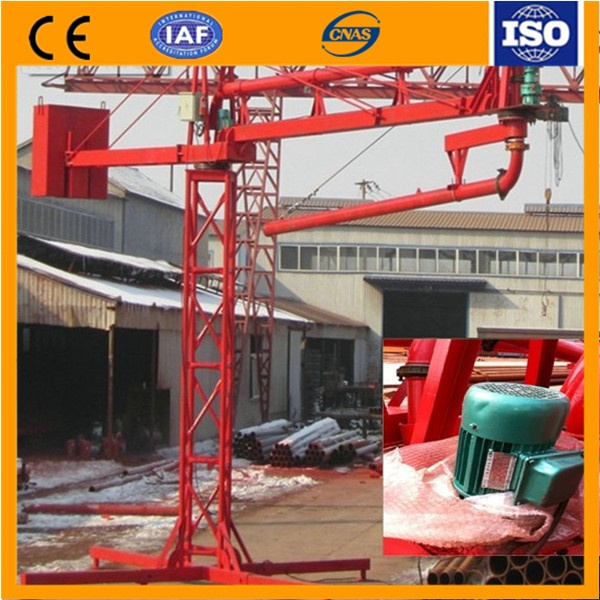

Electric concrete placing boom
Product specifications:
| electric facbric machine parameters | ||
| specifications | 12 meters electric (frame type) | 15meters electric (frame type) |
| radius of gyration(m) | 13.5 | 16.5 |
| the height of the placing boom(m) | 11.8 | 14.8 |
| diameter of conveying pipe(mm) | 125 | 125 |
| delivery pipe straight pipe wall thickness | 4.5 | 4.5 |
| bend pipe wall thickness | 6 | 6 |
| leg span(m) | 3.2*3.2 | 4*4 |
| rotation metiods | electric | electric |
| the whole weight(kg) | 1500 | 1900 |
| with weight(kg) | 800 | 1000 |
| material | square steel, channel steel,angle iron | square steel, channel steel ,angle iron |
| slewing range | 360 degree | 360 degree |
concrete placing boom features
1,Frame type big arm structure, increase the bearing capacity and stability.
2, High quality rotary bearing, flexible rotation, downy.
3, Double support legs to improve stability and endurance double.
4, With excellent firmness compared with GB steel, angle iron increased several times
5, Impact on the environment vibration slightly
6, With four cables to ensure a stable and secure products for the process
Our advantages:
1. Two foldable booms.
2. Our placing boom has captured the market share with good quality, competitive
price and good after sale service.
3. It is the necessary auxiliary equipment for pump transferring in construction field.
4. The machine is pulled by hand and can be slewing 360.
