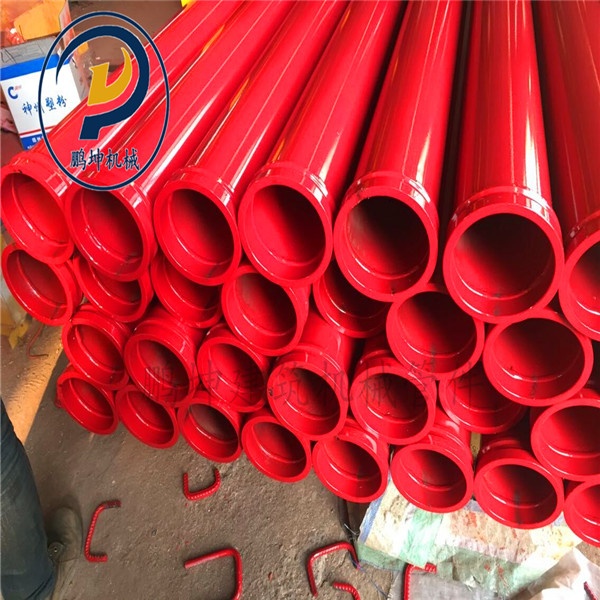

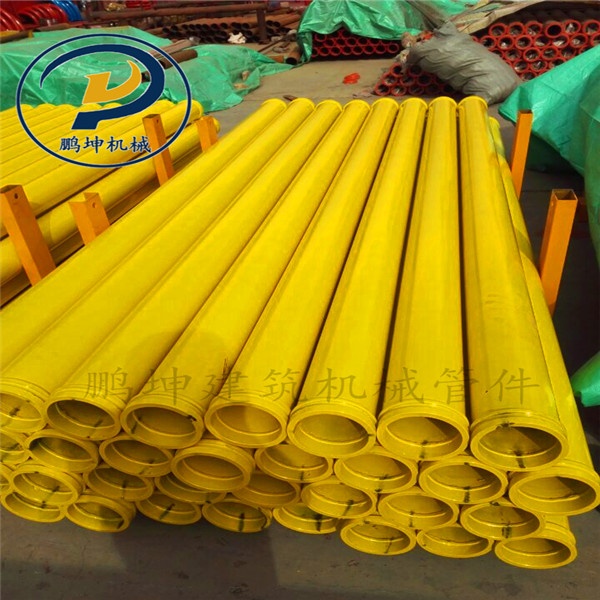

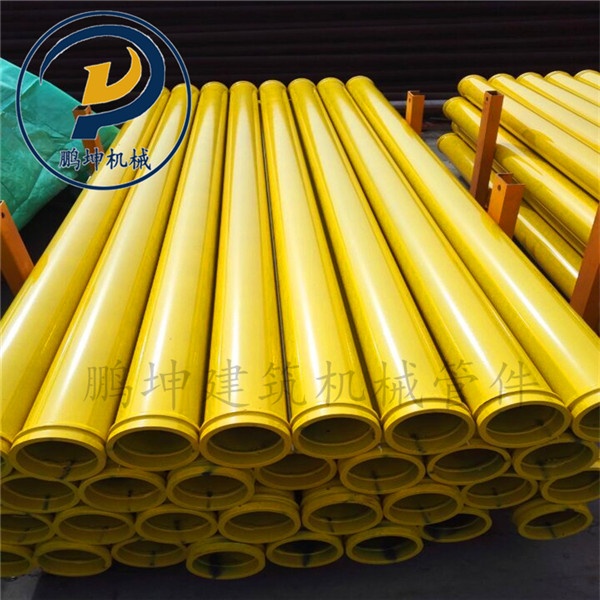

concrete pump pipe, delivery pipe

  • Introduction:Concrete pump pipe with different materials and sizes we supply A.Welded Concrete Pump Pipe B.ST52 Concrete Pump Pipe C.Hardened Concrete Pump Pipe D.Twin Wall Concrete Pump Pipe the pipe thickness from 4-8mm

concrete pump pipe, delivery pipe

Products in detail

Concrete pump pipe with different materials and sizes we supply

 A.Welded Concrete Pump Pipe

 B.ST52 Concrete Pump Pipe

 C.Hardened Concrete Pump Pipe

 D.Twin Wall Concrete Pump Pipe

Concrete pump pipe specifications

1.Material:  ST52,45Mn2,Q235, No.20,37Mn5 etc.

2. Sizes: DN60-DN180 (mm unit)

3. Length1m,2m,3m, 6m or according to clients�?/span> requirements.

4. Packing:  With waterproof plastic film and ends

 Product specification:

SK5.5"   DN125*4.5mm concrete pump pipe drawing



Name size thickness(mm) length(mm) using life(m3)
Q235 welded pipe DN125 4 3 8000
DN125 4.25 3 8000
DN125 4.75 3 12000
DN125 5 3 12000
ST52 Seamless steel pipe DN125 4.5 3 15000
DN125 5 3 18000
DN125 6 3 23000
DN125 7.75 3 25000
DN125 8 3 30000
single wall pipe DN125 4.5 3 20000
DN125 5 3 28000
DN125 6 3 30000
DN125 8 3 35000
twin wall pipe DN125 4.5 3 60000
DN125 5 3 60000
DN125 8 3 70000




  The factory plans:

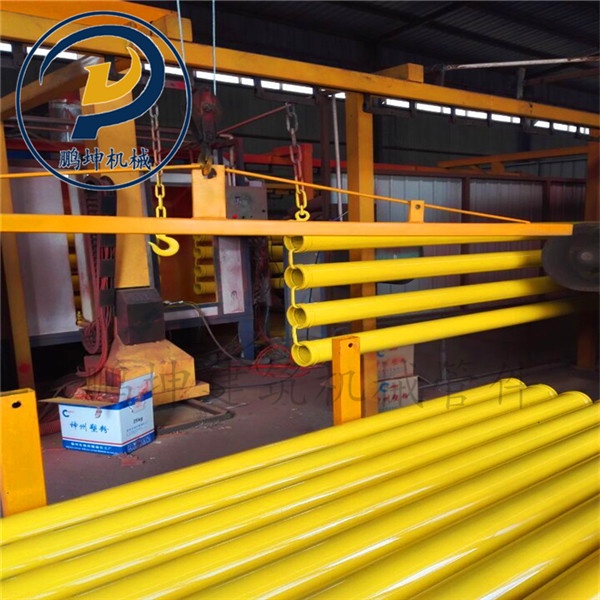

Product producting line
