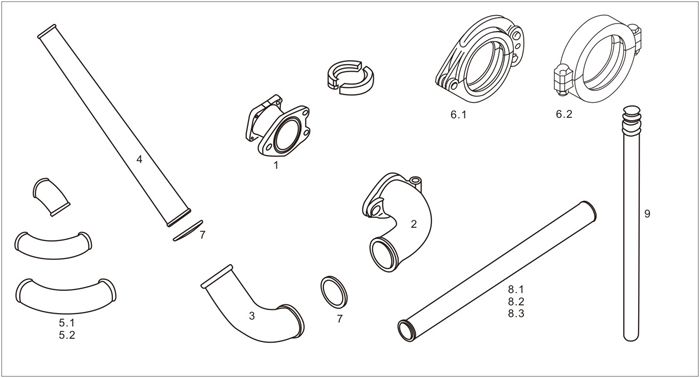

| pos | Name | Description |
| 1 | Connection bend | 14°DN180 |
| 2 | Reduction elbow | 90°DN180/150 |
| 3 | Elbow | 90°DN150 |
| 4 | Reducing pipe | DN150/125 1600mm |
| Reducing pipe | DN150/125 1460mm | |
| Elbow | DN125 5.5″ 90° | |
| 5.1 | Elbow | DN125 5.5″ 45° |
| Elbow | DN125 5.5′ 30° | |
| Elbow | DN125 5.5″ 14° | |
| Twin-wall elbow | DN125 5.5″ 90° | |
| 5.2 | Twin-wall elbow | DN125 5.5″ 45° |
| Twin-wall elbow | DN125 5.5″ 30° | |
| 6.1 | Snap coupling | DN125 5-1/2″ |
| 6.2 | 2 bolt coupling | DN125 5-1/2″ |
| 6.3 | 2 bolt mounting coupling | DN125 5-1/2″ |
| 6.4 | Wedge coupling | MF 150 6_ |
| 6.5 | Wedge coupling | MF 180 T |
| 7 | O-ring | DN150 MF |
| Collar | DN125 5-1/2″ | |
| 12 | SK collar | DN125 5-1/2″ |
| ST52 pipe | DN125 5″ x T4.0 x 3000mm SK ends | |
| 8.1 | ST52 pipe | DN125 5″ x T4.5 x 3000mm SK ends |
| ST52 pipe | DN125 5″ x T7.0 x 3000mm SK ends | |
| 8.2 | Hardened pipe | DN125 5B x T4.5 x 3000mm SK twin ends |
| Hardened pipe | DN125 5″ x T7.0 x 3000mm SK twin ends | |
| 8.3 | Twin-wall pipe | DN125 5″ x T4.5 x 3000mm SK twin ends |
| Twin-wall pipe | DN125 5″ x T7.0 x 3000mm SK twin ends | |
| Discharge hose | DN125 5″x4M, lend | |
| 9 | Discharge hose | DN125 5_ x 4M, 2 ends |
| Discharge hose | DN125 5″ x 3M, 1 end | |
| Discharge hose | DN125 5′ x 3M, 2 ends | |
| 10 | gasket | DN125 5-1/2′ reinforced |
| 8.1 | ST52 pipe | DN100 4″ x 4.5 x 3000mm SK ends |
| 11 | Reducer | 5″-4’xl000mm |
| Reducer | 5″ Female – 4″ x 1000mm | |
| 9 | Discharge hose | DN100 4- any length, SK 4-1/2- ends |
| 5.1 | Cast elbow | DN100 4_ x R275 x 90oo,SK 4-1/2’ ends |
| Cast elbow | DN100 4″ x R275 x 4500,SK 4-1/2″ ends | |
| 6.1 | Snap coupling | DN100 4-1/2- |
| 10 | gasket | DN100 4-1/2″ |
