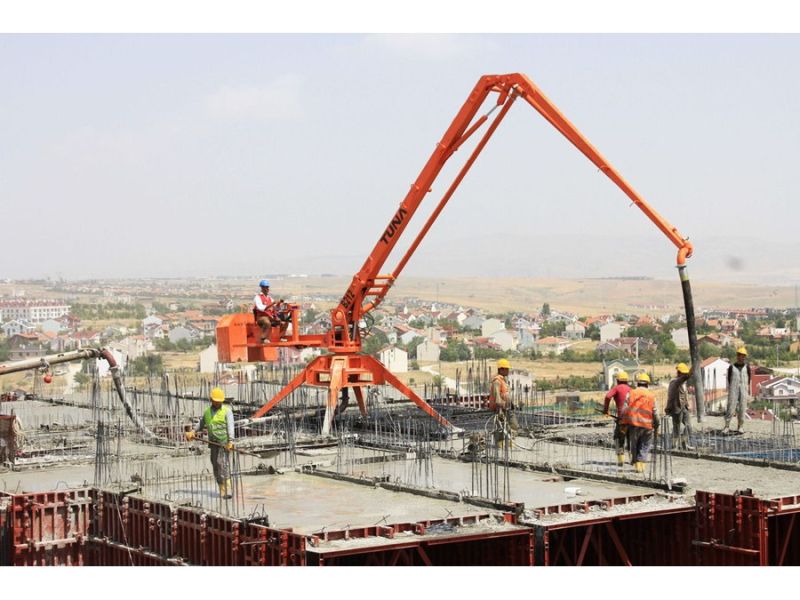

CZPPmobile hydraulic concrete placing booms mainly include 13m, 15m, 17m and 18m driven by fully hydraulic system. It does not need to be fixed while working and could be moved to another place by tower crane on site, highly movable and flexible. It is very suitable and widely used for the construction of form walls, pipes, columns, piles, other vertical structures, different floors without confined placing areas and complicated jobsites without being influenced by the size and shape of floors.
Technical Parameters of Mobile Hydraulic Concrete Distributor
| ITEM | UNIT | MODEL | |||||
| SAPLB13 | SAPLB15 | SAPLB17 | SAPLB18 | ||||
| Max. placing radius | m | 13 | 15 | 17 | 18 | ||
| Machine height | m | 3.9 | 2.6 | 3.2 | 3.75 | ||
| Slewing range | ° | 360 | |||||
| Slewing speed | r/min | 0.3-0.8 | |||||
| Motor power | Kw | 4 | 4 | 5.5 | 5.5/ | ||
| Hydraulic system pressure | MPa | 24 | |||||
| Supporting legs span | m | 3.15×3.15 | 4×4 | 4.6×4.6 | 5×5 | ||
| 1st Arm | Length | mm | 3700 | 6000 | 6660 | 7660 | |
| Articulation | ° | -2-84.4 | 0-70 | -4-65 | -4-65 | ||
| 2nd Arm | Length | mm | 4520 | 5000 | 5730 | 5730 | |
| Articulation | ° | 0-180 | |||||
| 3rd Arm | Length | mm | 4780 | 4000 | 4610 | 4610 | |
| Articulation | ° | 0-180 | |||||
| Length of end hose | m | 5″×3 | |||||
| Inner diameter of delivery pipeline | mm | DN125 | |||||
| Counter weight frame slewing radius | mm | 2720 | 2810 | 3150 | 3930 | ||
| Working Ambient Temperature | ºC | -15-50 | |||||
| Cleaning mode for delivery pipeline | – | Water Cleaning / Dry Cleaning | |||||
| Weight | Machine weight | Kg | 2700 | 3230 | 5000 | 6700 | |
| Counter weight | Kg | 2×900 | 2×1100 | 2×1100 | 2×1100 | ||
| Driving mode | – | Completely Hydraulic System | |||||
| Control mode | – | Manual / Radio Remote Control | |||||
Benefits & features
SANY Official Manufacturer HGR36 36m Concrete Placing Boom of Concrete Boom Pump THE LARGEST PRODUCTION BASE PLACING BOOMS IN THE WORLD
The placing boom is much preferred by construction units for its convenient and rapid installation and great free standing height so as to provide great convenience for constructors. It is particularly applicable to use in high-rise buildings and large-scale shopping centers.
SANY Official Manufacturer HGR36 36m Concrete Placing Boom of Concrete Boom Pump PERFECT QUALITY CREATED BY SCIENCE AND TECHNOLOGY
Full-hydraulic control, unexpected operating performance
Rapid installation, as fast as possible
Top configuration, intelligentized electric control system
Balance valve controls boom cylinder to guarantee safety
Improvement of service life by 3-5 times with delivery pipe wear-resistant technique
Telescopic supports with space beyond imagination
Fully automatic stepless lifting of climbing device, a magic weapon to win in technology
SANY Official Manufacturer HGR36 36m Concrete Placing Boom of Concrete Boom Pump VARIOUS CHOICE OF SOLUTION
Placing booms for high-speed rail
Climbing placing booms within floor
